Brand Name : Bestaro
Model Number : BT-5T
Certification : CE ISO GOST
Place of Origin : Henan,China
MOQ : 1piece
Price : 5000-8000 US$
Payment Terms : L/C, T/T
Supply Ability : 10000 sets per year
Delivery Time : 10-15 working day
Packaging Details : Export standard packaging
Product name : electric transfer cart
keywords : trackless transfer trolley
Type : Electric
Capacity : 5 ton electric transfer cart
Size : Customized Size
Power supply : Battery
Warranty : 1 Year
Color : Customized
Usage : transport
Application : Widely,Industrial Filed
Customization railless battery powered Steel Industry Heavy load Electric Transfer Cart
main material | steel, electronics |
bearing weight | 5 tons |
powered by | lithium battery or lead acid battery |
working time | 5-6 hours |
charging time | 7-8 hours |
control type | remote control,forward, back, turn left, turn right, emergency stop. |
working speed | 0-20 m/min, can be adjusted |
certificate | CE & ISO9001:2015 |
Electric Transfer Cart Parameters:
Technical parameters for trackless electric transfer carts | ||||||||
Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
Structure of frame | steel plates welded, beam structure | |||||||
Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
Ground requirement | cement floor | steel plate ground | ||||||
Table size(mm) | 3000× | 3600× | 4000× | 4500× | 5000× | 5500× | 6000× | 10000× |
Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
Ground clearanc(mm) | 50 | 75 | ||||||
Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
Turning type | turning while driving with no stop | |||||||
Control method for turning | control button | |||||||
Turning structure | mechanical | |||||||
Wheel material | ZG55+hydropur ture | |||||||
Running speed(m/min) | 0-15 | 0-12 | ||||||
Brake principle | electric magnetic brake | |||||||
Operation method | with wire or no wire | |||||||
Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
Battery maintenance | free of maintenance | |||||||
Charger's installation | installed on cart | split-type |
The advantages of lithium battery transfer cart
1. Motor drive system
2. It adopts the electromagnetic brake motor and the planetary reducer as the overall driving scheme, featuring high precision, large torque, high transmission ratio, no noise and no maintenance.
3.Frequency conversion technology
Using frequency conversion technology, we can save about 20%-40% of the power cost budget, from slow to fast operation mode, greatly reducing the impact on the equipment and increasing the service life of the entire system.
4.Modularization
All accessories are modular and do not require soldering, minimizing the additional cost of replacing the accessories.

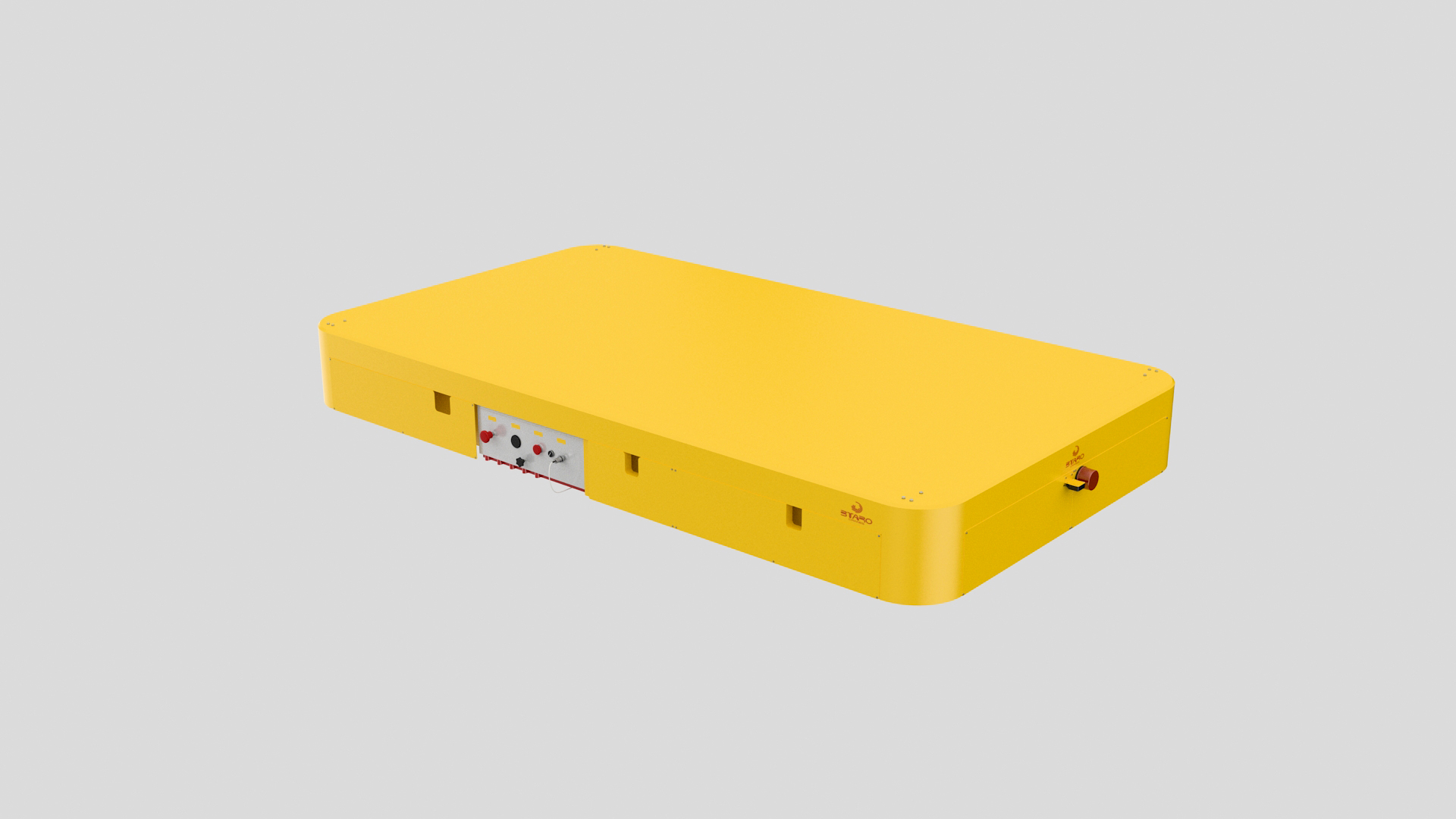

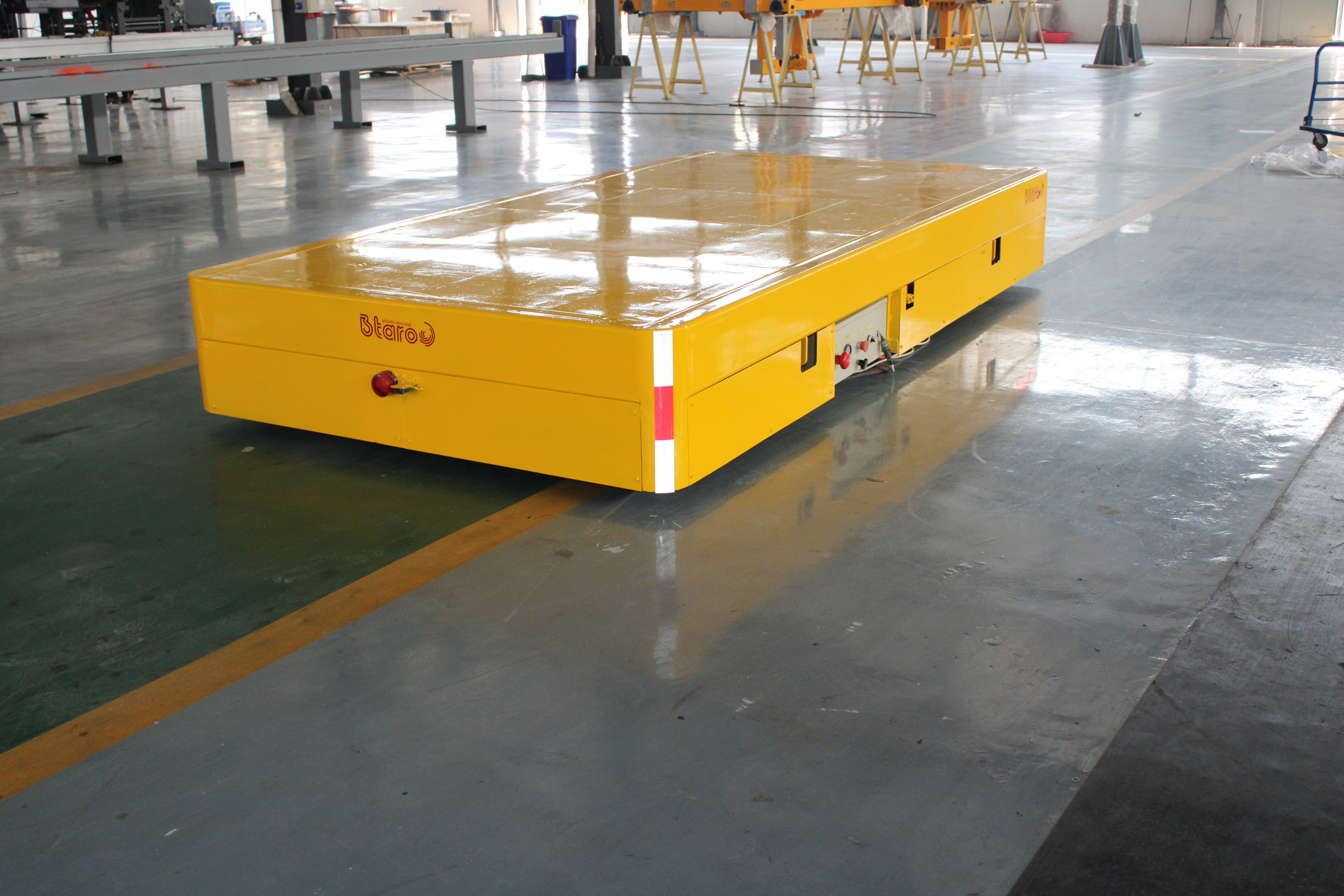

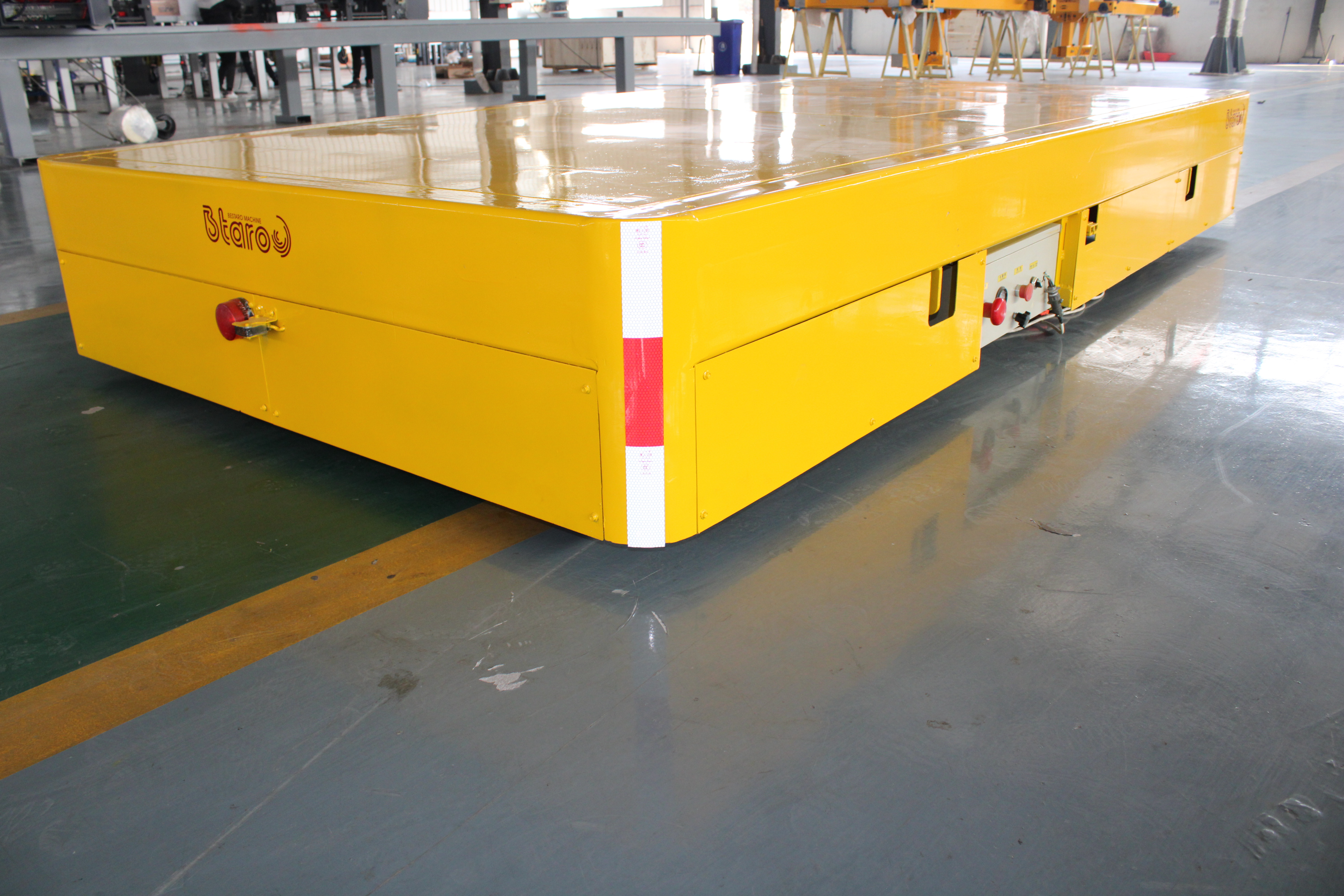

Electric Transfer Cart Photos:
![]() |
Eco Friendly Trackless Transfer Cart Heavy Loads 5 Ton Battery Operated Transfer Trolley Images |
